Yanayin Single 12 Cores MPO MTP Optical Fiber Loopback

Yanayin Guda ɗaya 12 Cores MPO MTP Fiber Loopback Fitar da Hoton Na gani

Takaitaccen Bayani:

UPC ko APC goge yana da kyau.

Push-Pull ƙirar MPO.

Akwai a cikin nau'ikan daidaitawar wayoyi da nau'ikan fiber.

RoHS mai yarda.

Akwai ƙima na musamman.

8, 12, 24 fibers na zaɓi yana samuwa.

Akwai tare da ko ba tare da Jawo shafuka.

Karami kuma mai ɗaukuwa.

mai girma don magance hanyoyin haɗin fiber / musaya da kuma tabbatar da cewa layin ba a karye ba.

Yana da dacewa, ƙarami kuma mai sauƙi don gwada QSFP+ Transceiver.

Aika mana imel

Cikakken Bayani

Tags samfurin

Bayanin Samfura

•Ana amfani da MPO MTP Optical Fiber Loopback don bincike na cibiyar sadarwa, daidaita tsarin tsarin gwaji, da na'urar ƙonewa. Sake mayar da siginar yana ba da damar gwada hanyar sadarwar gani.

•MPO MTP Optical Fiber Loopbacks ana bayar da su tare da zaɓuɓɓukan fiber 8, 12, da 24 a cikin ƙaramin sawun ƙafa.

•MPO MTP Optical Fiber Loopbacks ana bayar da su tare da madaidaiciya, ketare, ko fitin fil na QSFP.

•MPO MTP Optical Fiber Loopbacks suna ba da siginar madauki don gwada watsawa da ayyukan karɓa.

•MPO MTP Optical Fiber Loopbacks ana amfani da su sosai a cikin yanayin gwaji musamman a cikin layi daya na cibiyoyin sadarwa 40/100G.

•MPO MTP Optical Fiber Loopbacka yana ba da damar tabbatarwa da gwaji na transceivers da ke nuna ƙirar MTP - 40GBASE-SR4 QSFP+ ko na'urorin 100GBASE-SR4.

•MPO MTP Optical Fiber Loopbacks an gina su don haɗa Transmitter (TX) da Receivers (RX) wuraren mu'amalar masu karɓar MTP.

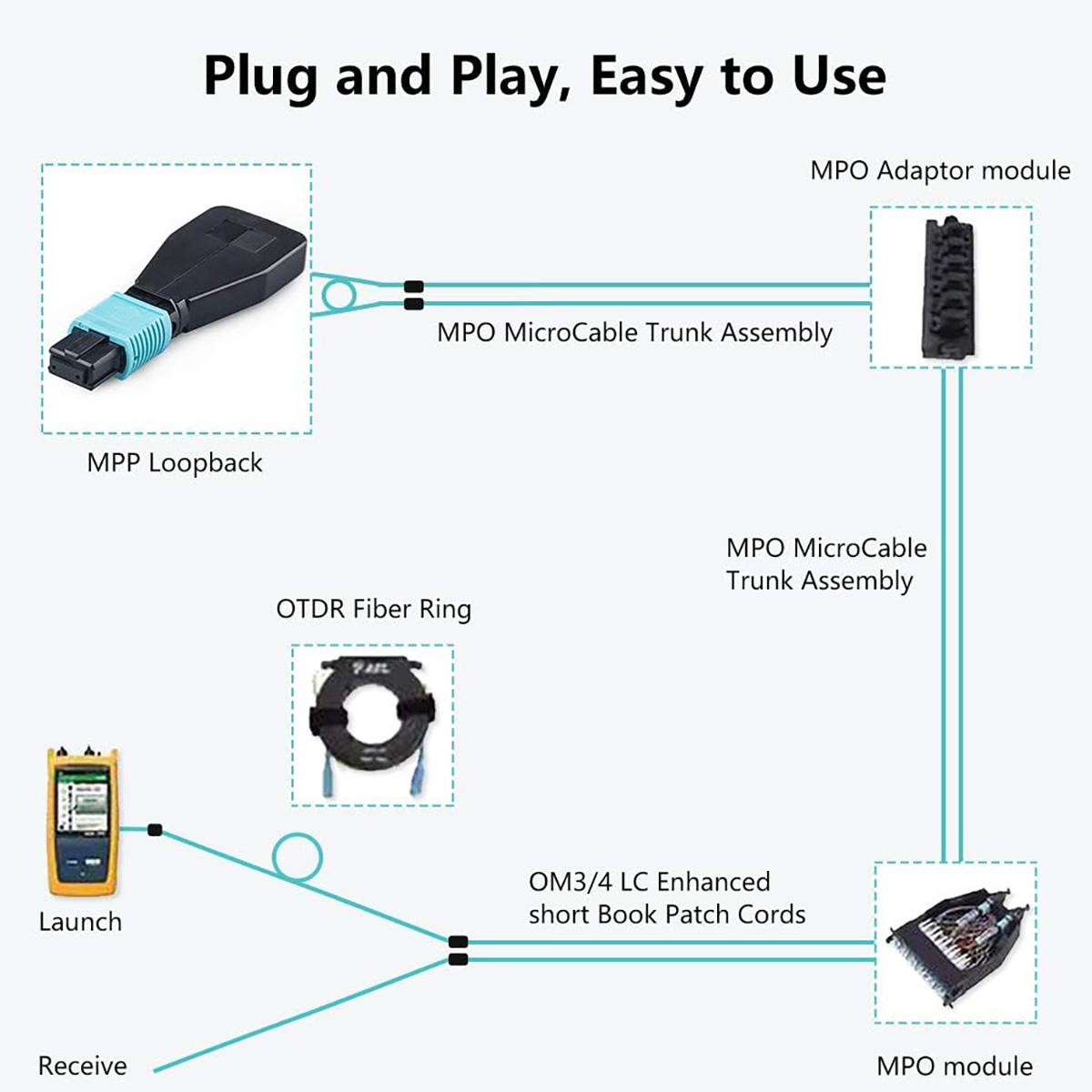

•MPO MTP Optical Fiber Loopbacks na iya sauƙaƙe da haɓaka gwajin IL na sassan cibiyoyin sadarwa na gani ta hanyar haɗa su zuwa kututturen kututturen MTP / faci.

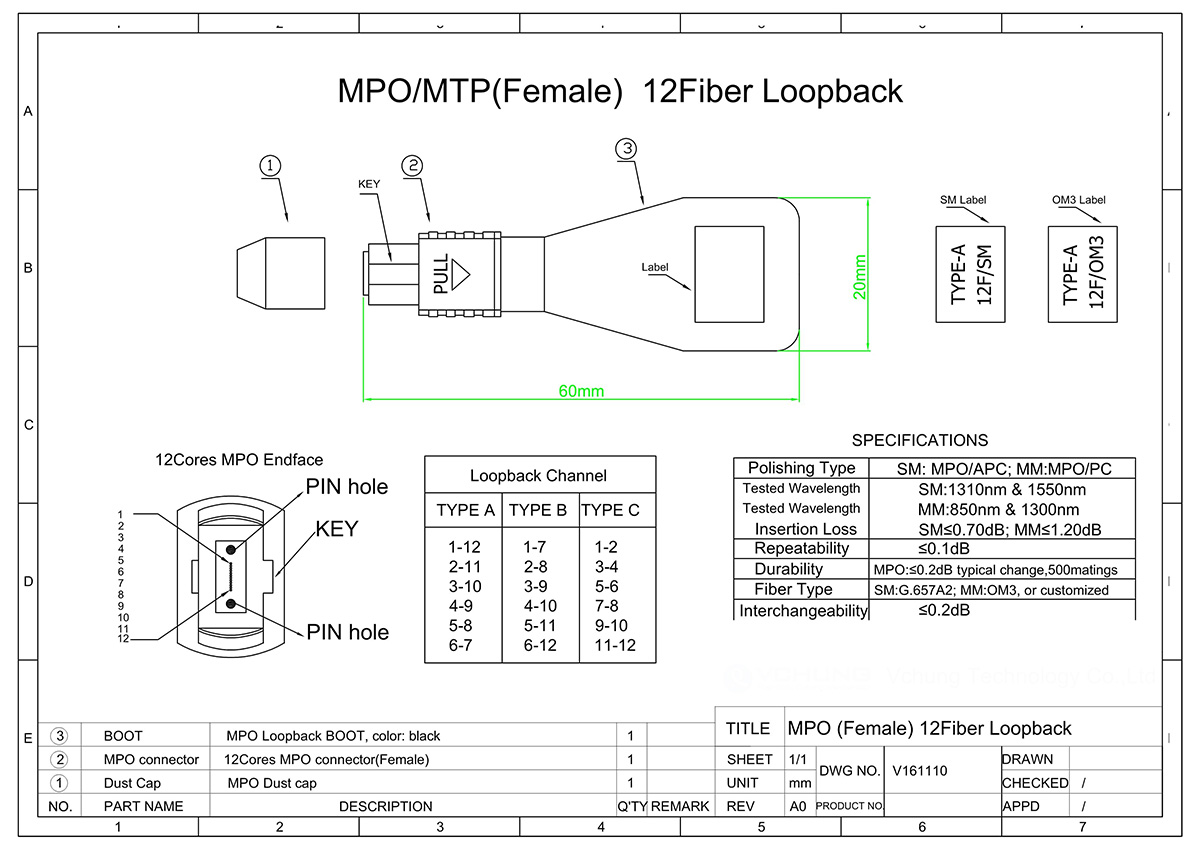

Ƙayyadaddun bayanai

Nau'in Haɗawa	MPO-8MPO-12MPO-24	Ƙimar Ƙarfafawa	1 ~ 30dB
Yanayin Fiber	Yanayin Single	Tsawon Tsayin Aiki	1310/1550 nm
Asarar Shigarwa	≤0.5dB (misali)≤0.35dB (Elite)	Maida Asara	≥50dB
Nau'in Jinsi	Mace zuwa Namiji	Haƙurin Hakuri	(1-10dB) ± 1(11-25dB) ± 10%

Aikace-aikace

+ MTP/MPO na gani fiber loopbacks ana amfani da ko'ina a cikin gwaji yanayi musamman a cikin layi daya optics 40 da 100G cibiyoyin sadarwa.

+ Yana ba da damar tabbatarwa da gwaji na transceivers da ke nuna ƙirar MTP - 40G-SR4 QSFP +, 100G QSFP28-SR4 ko 100G CXP/CFP-SR10 na'urorin. An gina madogara don haɗawa Mai watsawa (TX) da masu karɓa (RX) matsayi na musaya masu ɗaukar hoto na MTP®.

+ MTP/MPO fiber madauki na fiber na gani na iya sauƙaƙe da haɓaka gwajin IL na sassan cibiyoyin sadarwa ta hanyar haɗa su zuwa kututturen kututturen MTP / faci.
